Applicable specifications	5-30L
Production capacity	5L 10-12 bottles/min (depending on the bottle specifications and filling volume)
Air consumption	15m3/h Air pressure, 0.3-0.4Kg/cm2
Power	1.5kw
Weight	600kg
Dimensions	2000×1200×1800mm

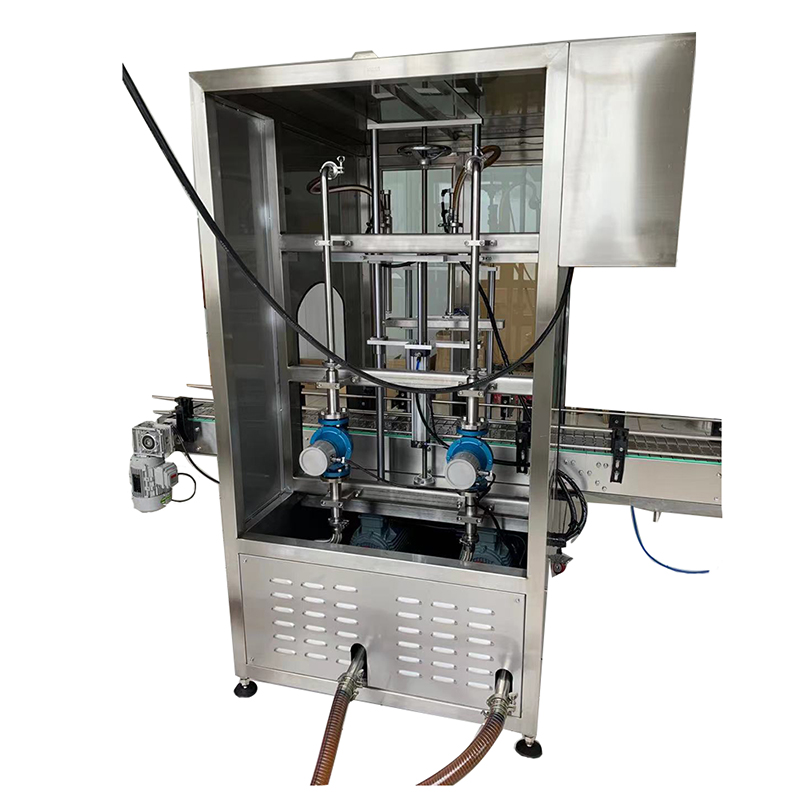

The quality of the machine fully complies with EU and CGMP standards. Our company adopts advanced PLC program control, medium Text interface touch screen display, PLC program control and touch screen operation procedures are as follows: manual adjustment program, automatic Control program, parameter setting program. This machine is a new generation of quantitative filling equipment developed by our company by introducing and absorbing advanced European technology. 5-30 The liter flowmeter filling production line adopts advanced flowmeter to control the measurement, and the filling accuracy is two thousandths, which is suitable for filling all kinds of edible oils. The degree of automation of operation is high, the filling amount can be adjusted at will on the man-machine interface, and the operation is simple and clear. , by controlling Filling parameters to achieve different metering. Linear bottle feeding and positioning makes it easier to change containers and change filling volume adjustment Simple, quantitative filling of different containers can be achieved by replacing a few accessories. Electrical and pneumatic components use world-renowned brands, The control system adopts Japan's Mitsubishi PLC programmable controller with man-machine interface, with novel design and beautiful appearance. has self High degree of automation, stable and reliable performance, high filling accuracy, strong applicability, simple and convenient operation and adjustment, etc. widely It is suitable for filling of low-viscosity fluids such as various mineral water, purified water, edible oil, lubricating oil and liquid medicine. Replace anti-corrosion The pump head and flowmeter can complete the quantitative filling of corrosive liquids.

Serial number	Name	Manufacturer
1	PLC	Mitsubishi
2	Inverter	Mitsubishi
3	Touch screen	Taiwan Weilun
4	Plastic pump	Domestic
5	Flowmeter	Domestic
6	Low voltage electrical appliances	Schneider
7	Main material	304 stainless steel
8	The electromagnetic valve	AirTAC
9	Cylinder	AirTAC
