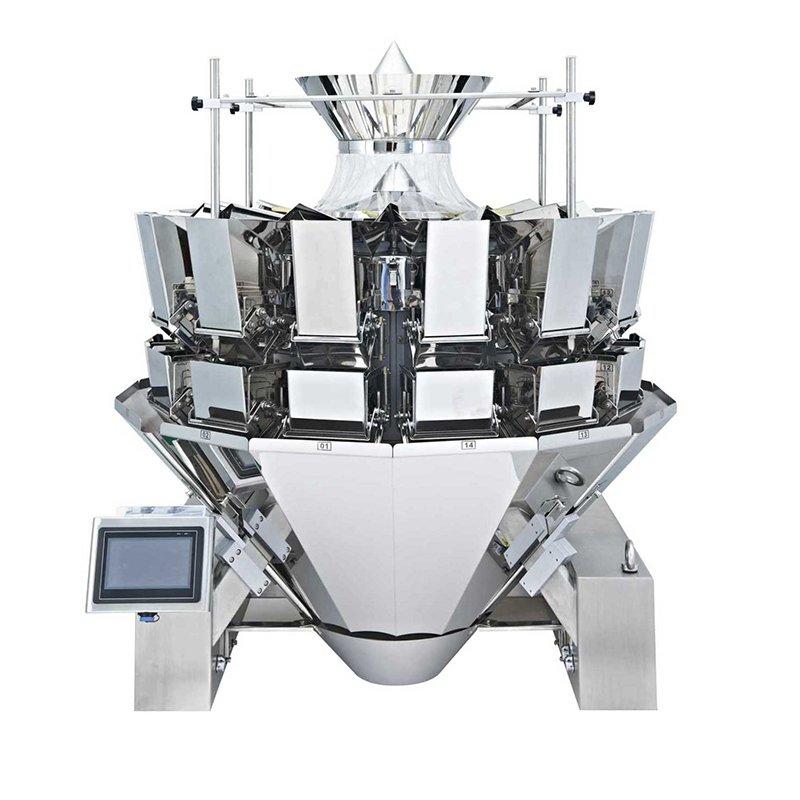

10-14Multihead Standard Combination Weighing

Standard combination weighing scale is a weighing equipment with five types of selection, including 10, 12 and 14 heads. The maximum weighing speed of 14 combination weighing scales can reach 120 bags per minute. Standard combination weighing scale has a wide range of weighing, suitable for candy, melon seeds, jelly, freezing and other materials weighing, is the most popular combination weighing products of YiLong.

Products Details

Model

A10

A12

A14

Weighing Range

10-1000g

10-1500g

10-1500g

Accuracy

X(0.5)

X(0.5)

X(0.5)

Max Speed

65P/M

100P/M

120P/M

Hopper Volume

1.6/2.5L

Control Panel

7'' Touch Screen

Options

Dimple Plate/Timing Hopper/Printer/Reject Device

Driving System

Step Motor

Power Requirement

220V/1000W/ 50/60Hz/10A

220V/1200W/ 50/60Hz /10A

220V/1500W/ 50/60Hz /10A

Packing Dimension(mm)

1620(L)*1100(W)*1110(H)

1700(L)*1100(W)*1130(H)

1700(L)*1100(W)*1265(H)

Gross Weight

380kg

430kg

490kg
